The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

  • 1
  • 2

Brand Name : YOUCii

Model Number : U8728C

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C,D/A,D/P,Western Union,T/T,MoneyGram

Supply Ability : 20 pcs+per month

Delivery Time : 20 work days

Packaging Details : Carton

Fiber Type : SMFiber

Weight : 3Kg

Communication Interface : RS232 / USB / LAN

Warranty : one year

Measuring Range : -75～+5dBm

Probe Type : InGaAs

Supply Voltage : 100~240V

Contact Now

The Rapid Scanning Optical Power Meter Has A Sampling Rate Of 100K

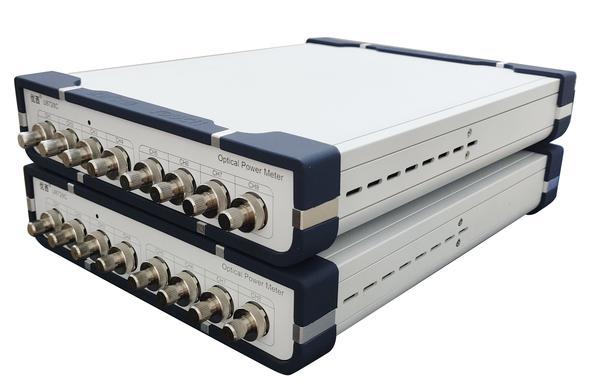

The 8-channel rapid scanning optical power meter is an instrument capable of simultaneously and rapidly measuring the power of 8 optical channels. It features high-speed measurement, data processing and other functions, and is widely used in fields such as optical fiber communication and optical device testing.


U8724/8 technical specification:

Model # U8724/8A U8724/8B U8724/8C
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/980/1310/1490/1550/1610 nm

1510~1625 nm  Continuous calibration
Power Range +10 ~ -65dBm +25~-55dBm +5~-75dBm
Sampling period 100us (10KHz) 10 us (100KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss ＞40 dB
Communication Interface RS232, USB,Control by PC
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 years
Dimensions 235 mm W, 55mm H, 320 mm D
 Weight 3.0 kg


The 8-channel fast scanning optical power meter significantly enhances the testing efficiency of optical communication devices through multi-port parallel testing, high-speed sampling and dynamic range optimization, and is particularly suitable for scenarios such as high-density wavelength division multiplexing (DWDM) and optical splitters (PLC).
