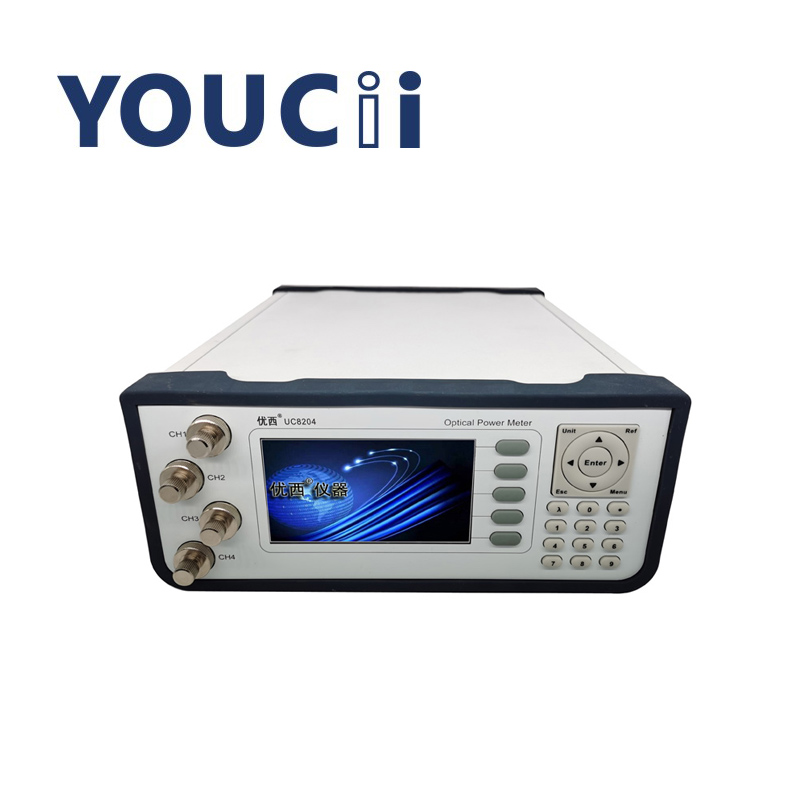

4CH Optical Fiber Power Meter With +10 ~ -70dBm Power Range 850nm

Brand Name : UC

Model Number : UC8204

Place of Origin : CHINA

MOQ : 1pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A

Supply Ability : 15pcs+per month

Delivery Time : 15 work days

Packaging Details : Carton

Wavelength Range : 850 ~ 1700 nm

Power Range : +10 ~ -65dBm

Linearity (power) : ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)

Operation Temperature : 0 ～ +40℃

Recalibration Period : 2 years

Dimensions : 245 mm W, 105 mm H, 320 mm D

Optical Power Meter : fiber power meter

Contact Now

4CH Optical Fiber Power Meter With +10 ~ -70dBm Power Range

UC8204 2/4channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.

UC8204 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter options.

Model #	UC8204
Number of Channels	4
Power Range	+10 ~ -70dBm
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/908/1270/1290/1310/1330/1510/1530/1550/1570 nm
Sampling period	1ms (1KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	2.0 kg

Note: The UC820x is available in multiple configurations: x indicates the number of channels, the bare fiber adapter is UC8202A, and the high power adapter is UC8202B
